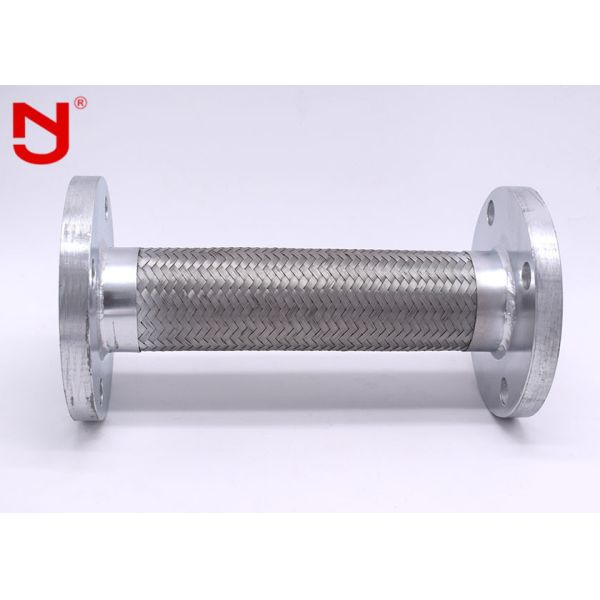

Inner Core: Corrugated Stainless Steel
- Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
- Stainless steel tubing formed into corrugations parallel to one another
- Helical / Convoluted option available upon request
Outer Core:Braided Stainless Steel Layers
- Purchase corrugated core hose with no layers, single or double braided
- Flexible metal hose outer braid layers made from 304 stainless steel
What is the condition of our metal flexible hose ?
| Connection type | Flanged/threaded/quick coupling/welding |
| Hose material | Ss304/ss316/ss321 |
| Diameter | DN6-DN700 |
| Pressure | 6bar-25bar |
| Temperature | -196℃~+600℃ |
| Length | According to your request |
| Thickness | 5mm-20mm |
To properly design a metal hose assembly for a particular application, the following design parameters must be determinde:
1. Temperature-----You should provide us information as the temperature to which the assembly is exposed a
proper fit.
2. Size-----The diameter of the connections in which the assembly will be installed is needed to provide.
3. Media-----This is improtant since you must be sure that the assembly's components are chemically
compatible with the media going through the hose as well as the environment in which the hose is installed.
4. Pressure-----identify the internal pressure to which the assembly will be exposed. This information is
important to determine if the assembly is strong enough for the application.
5. Indenify the necessary end fittings-----This is required since fittings for the assembly must be chosen to
properly fit the mating connection.
