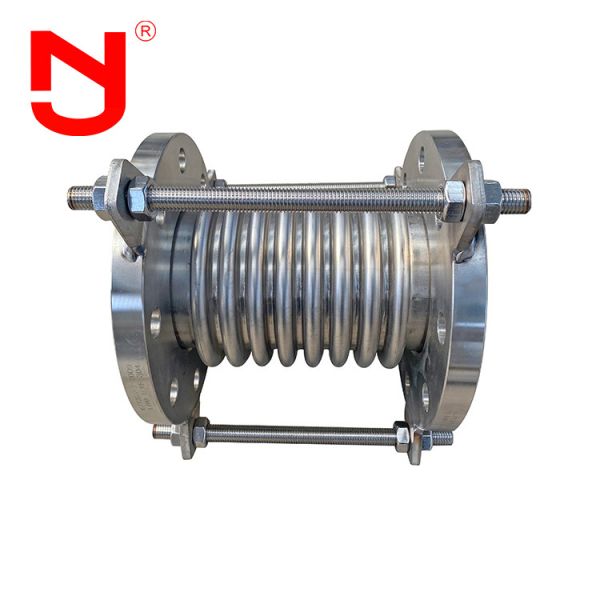

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Thermal Expansion Joint Bellow Compensator Flexible Expansion Joint For Industrial Pipeline

This thermal expansion joint, also known as a bellow compensator, is designed to absorb thermal movement, vibration, and mechanical stress in industrial pipeline systems. Featuring a flexible multi-layer bellows structure, it provides excellent adaptability to axial, lateral, and angular displacement, helping to protect pipelines from damage caused by temperature changes and dynamic loads. With robust construction and reliable sealing performance, it is widely used in water treatment, chemical processing, power plants, HVAC systems, and general industrial applications requiring durable and efficient pipeline compensation.

Performance of Thermal Expansion Joint

The main elastic element of flexible expansion joint is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint compensates the pipeline in axial, transverse and angular directions. Flexible expansion joint can play the following roles:

1. The flexible expansion joint absorbs the axial, transverse and angular thermal deformation of the pipeline.

2. Flexible expansion joint can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.

3. Flexible expansion joint can absorb the pipeline deformation caused by earthquake and land subsidence.

Technique Parameter of Thermal Expansion Joint

Production process of Thermal Expansion Joint.

Do you know how is a high quality Thermal Expansion Joint made?Let's see with JINGNING.

Thermal Expansion Joint advantages

1. Thermal Expansion Joint is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. Thermal Expansion Joint has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of flexible expansion joint mold base customization and OEM

5. Free flexible expansion joint samples

6. Large inventory of flexible expansion joint

Thermal Expansion Joint application

Because of its flexibility, flexible expansion joint can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The bellows expansion can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of bellows expansion is higher and higher.

FAQ

Q1:Can the Thermal Expansion Joint be marked with customized logo?

A1:Yes,the Thermal Expansion Joint can be marked with your logo. We could provide OEM&ODM service for Thermal Expansion Joint.

Q2:What’s the face to face length of Thermal Expansion Joint?

A2:The face to face length of Thermal Expansion Joint can be L130, L152,L203... We also could accept customized length according to your requirements.

Q3:Can you provide drawings of Thermal Expansion Joint?

A3:Yes,we could provide drawings of Thermal Expansion Joint for you.Please contact us to get the drawing of Thermal Expansion Joint.

Q4:What certificates of Thermal Expansion Joint can you provide?

A4:We could provide CE,ISO certificate for our Thermal Expansion Joint.

Q5:Can we get a sample of Thermal Expansion Joint?

A5:Yes,we could provide samples for you to test the quality of our Thermal Expansion Joint.

Multi-Layer Bellows Thermal Expansion Joint

Carbon Steel Bellow Compensator

17 Years Manufacturing Experience Flexible Expansion Joint

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience Images
